Overview¤

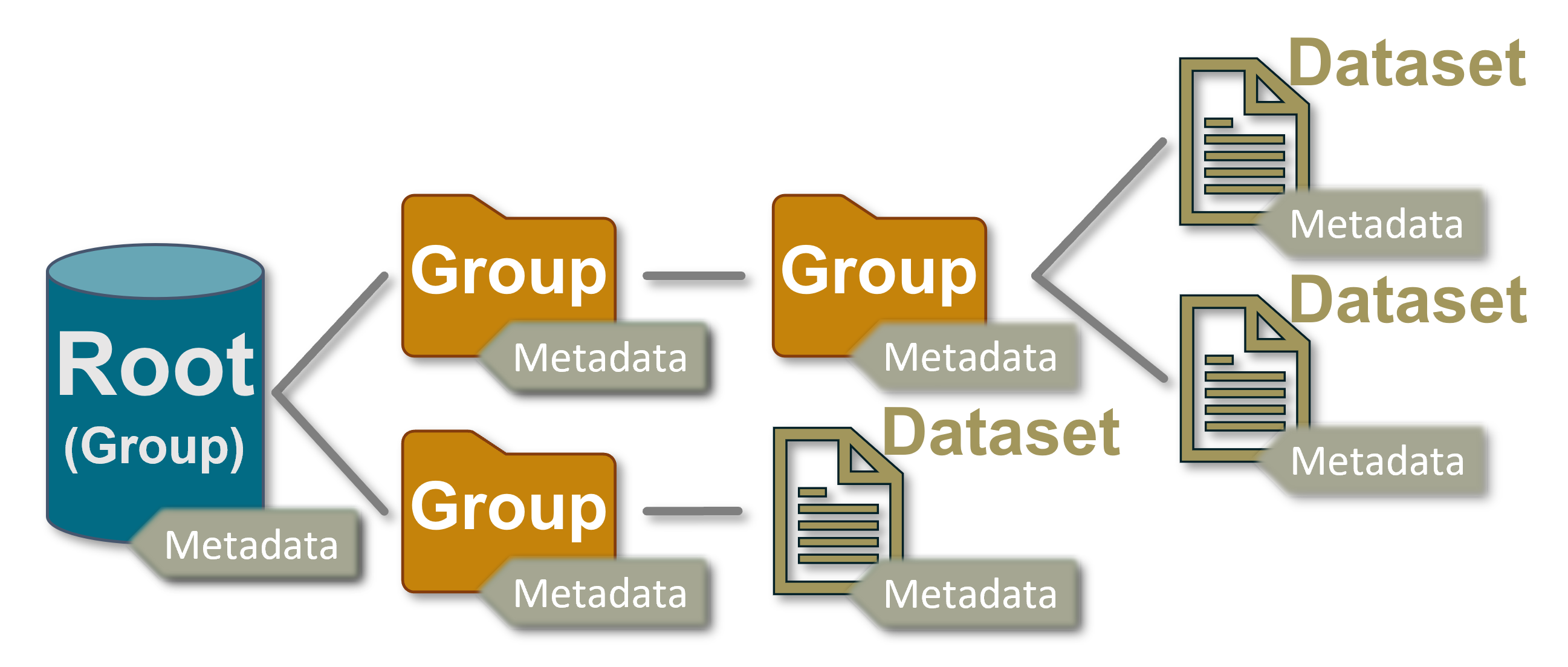

msl-io follows the data model used by HDF5 to read and write data files — where there are Groups and Datasets and each item has Metadata.
The tree structure is similar to the file-system structure used by operating systems. Groups are analogous to directories (where Root is the root Group) and Datasets are analogous to files.
The data files that can be read or written are not restricted to HDF5 files, but any file format that has a Reader implemented can be read and data files can be created using any of the Writers.
Write a file¤
Suppose you want to create a new JSON file format. We first create an instance of JSONWriter
>>> from msl.io import JSONWriter
>>> root = JSONWriter()
then we can add Metadata to the root Root,
>>> root.add_metadata(one=1, two=2)
create a Dataset,
>>> dataset1 = root.create_dataset("dataset1", data=[1, 2, 3, 4])
create a Group,
>>> my_group = root.create_group("my_group")
and create a Dataset in my_group
>>> dataset2 = my_group.create_dataset("dataset2", data=[[1, 2], [3, 4]], three=3)
If the parent Groups do not exist, they are created
>>> dataset3 = root.create_dataset("group1/group2/group3/dataset3", data=[9, 8, 7])
Finally, we write the file
>>> root.write(file="my_file.json")
Read a file¤
The read function is available to read a file. Provided that a Reader subclass has been implemented to read the file, the subclass instance is returned. We will now read the file that we created above
>>> from msl.io import read
>>> root = read("my_file.json")
You can print a tree representation of all Groups and Datasets in the Root by calling the tree method
>>> print(root.tree())
<JSONReader 'my_file.json' (4 groups, 3 datasets, 2 metadata)>
<Dataset '/dataset1' shape=(4,) dtype='<f8' (0 metadata)>
<Group '/group1' (2 groups, 1 dataset, 0 metadata)>
<Group '/group1/group2' (1 group, 1 dataset, 0 metadata)>
<Group '/group1/group2/group3' (0 groups, 1 dataset, 0 metadata)>
<Dataset '/group1/group2/group3/dataset3' shape=(3,) dtype='<f8' (0 metadata)>
<Group '/my_group' (0 groups, 1 dataset, 0 metadata)>
<Dataset '/my_group/dataset2' shape=(2, 2) dtype='<f8' (1 metadata)>
Since the root item is a Group instance (which operates like a Python dict) you can iterate over the items that are in the file
>>> for name, node in root.items():
... print(f"{name!r} -- {node!r}")
'/dataset1' -- <Dataset '/dataset1' shape=(4,) dtype='<f8' (0 metadata)>
'/my_group' -- <Group '/my_group' (0 groups, 1 dataset, 0 metadata)>
'/my_group/dataset2' -- <Dataset '/my_group/dataset2' shape=(2, 2) dtype='<f8' (1 metadata)>
'/group1' -- <Group '/group1' (2 groups, 1 dataset, 0 metadata)>
'/group1/group2' -- <Group '/group1/group2' (1 group, 1 dataset, 0 metadata)>
'/group1/group2/group3' -- <Group '/group1/group2/group3' (0 groups, 1 dataset, 0 metadata)>
'/group1/group2/group3/dataset3' -- <Dataset '/group1/group2/group3/dataset3' shape=(3,) dtype='<f8' (0 metadata)>
where node will either be a Group or a Dataset.
You can iterate only over the Groups that are in the file
>>> for group in root.groups():
... print(group)
<Group '/my_group' (0 groups, 1 dataset, 0 metadata)>
<Group '/group1' (2 groups, 1 dataset, 0 metadata)>
<Group '/group1/group2' (1 group, 1 dataset, 0 metadata)>
<Group '/group1/group2/group3' (0 groups, 1 dataset, 0 metadata)>
or iterate over the Datasets
>>> for dataset in root.datasets():
... print(repr(dataset))
<Dataset '/dataset1' shape=(4,) dtype='<f8' (0 metadata)>
<Dataset '/my_group/dataset2' shape=(2, 2) dtype='<f8' (1 metadata)>
<Dataset '/group1/group2/group3/dataset3' shape=(3,) dtype='<f8' (0 metadata)>
You can access the Metadata of any item through the metadata attribute
>>> print(root.metadata)
<Metadata '/' {'one': 1, 'two': 2}>
You can access values of the Metadata as attributes
>>> dataset2.metadata.three
3
or as keys
>>> dataset2.metadata["three"]
3
When root is returned, it is accessed in read-only mode
>>> root.read_only
True
>>> for name, node in root.items():
... print(f"is {name!r} in read-only mode? {node.read_only}")
is '/dataset1' in read-only mode? True
is '/my_group' in read-only mode? True
is '/my_group/dataset2' in read-only mode? True
is '/group1' in read-only mode? True
is '/group1/group2' in read-only mode? True
is '/group1/group2/group3' in read-only mode? True
is '/group1/group2/group3/dataset3' in read-only mode? True
If you want to edit the Metadata of root, or modify any Groups or Datasets in root, then you must first set the item to be writeable. Setting the read-only mode of root propagates that mode to all items within root. For example,
>>> root.read_only = False
will make root and all sub-Groups and all sub-Datasets within root to be writeable
>>> for name, node in root.items():
... print(f"is {name!r} in read-only mode? {node.read_only}")
is '/dataset1' in read-only mode? False
is '/my_group' in read-only mode? False
is '/my_group/dataset2' in read-only mode? False
is '/group1' in read-only mode? False
is '/group1/group2' in read-only mode? False
is '/group1/group2/group3' in read-only mode? False
is '/group1/group2/group3/dataset3' in read-only mode? False
You can make only a specific item (and its descendants) writeable as well. You can make my_group and dataset2 to be in read-only mode by the following (recall that root behaves like a Python dict)
>>> root["my_group"].read_only = True
and this will keep root, dataset1 and all items contained within the group1 Group to be in read-write mode, but change my_group and dataset2 to be in read-only mode
>>> root.read_only
False
>>> for name, node in root.items():
... print(f"is {name!r} in read-only mode? {node.read_only}")
is '/dataset1' in read-only mode? False
is '/my_group' in read-only mode? True
is '/my_group/dataset2' in read-only mode? True
is '/group1' in read-only mode? False
is '/group1/group2' in read-only mode? False
is '/group1/group2/group3' in read-only mode? False
is '/group1/group2/group3/dataset3' in read-only mode? False
You can access Groups and Datasets as keys or as class attributes
>>> root["my_group"]["dataset2"].shape
(2, 2)
>>> root.my_group.dataset2.shape
(2, 2)
See Accessing Keys as Class Attributes for more information.
Convert a file¤
You can convert between file formats using any of the Writers. Suppose you had a file in the JSON format and you wanted to convert it to the HDF5 format
>>> from msl.io import HDF5Writer
>>> h5 = HDF5Writer("my_file.h5")
>>> h5.write(root=read("my_file.json"))
GTC Archive¤
You can store and retrieve a GTC Archive so that uncertain numbers can be used in later calculations.
>>> from GTC import pr, ureal
>>> from msl.io import JSONWriter, read
# Create an Archive
>>> archive = pr.Archive()
>>> archive.add(x=ureal(1, 0.1))
# Write the Archive as metadata (using any Writer is okay)
>>> with JSONWriter("archived.json") as w:
... w.add_metadata(archive=pr.dumps_json(archive))
# Read the file and load the Archive from metadata
>>> root = read("archived.json")
>>> archive = pr.loads_json(root.metadata.archive)
>>> archive["x"]
ureal(1.0,0.1,inf)
Read a table¤
The read_table function will read tabular data from a file. A table has the following properties:
- The first row is a header
- All rows have the same number of columns
- All values in a column have the same data type
The returned item is a Dataset with the header provided in the Metadata. You can read a table from a text-based file or from a spreadsheet.
For example, suppose a file named my_table.txt contains the following information
| x | y | z |
|---|---|---|
| 1 | 2 | 3 |
| 4 | 5 | 6 |
| 7 | 8 | 9 |
You can read this table using the read_table function
>>> from msl.io import read_table
>>> table = read_table("my_table.txt")
>>> table
<Dataset 'my_table.txt' shape=(3, 3) dtype='<f8' (1 metadata)>
>>> table.metadata
<Metadata 'my_table.txt' {'header': ['x', 'y', 'z']}>
>>> table.data
array([[1., 2., 3.],
[4., 5., 6.],
[7., 8., 9.]])
and since a Dataset behaves like a numpy ndarray, you can call ndarray attributes directly with the table instance
>>> table.shape
(3, 3)
>>> print(table.max())
9.0
You can define the dtype of each column. For example, to return integer values instead of floating-point numbers you can include the dtype=int keyword argument
>>> table = read_table("my_table.txt", dtype=int)
>>> table.dtype
dtype('int64')
and the dtype value is passed to the dtype constructor.
However, if you specify the dtype value as a string which starts with the text header, then the values in the header are used as field names for the structured array that is created where each data type is by default a double (note: the header is still included as metadata)
>>> table = read_table("my_table.txt", dtype="header")
>>> table.dtype
dtype([('x', '<f8'), ('y', '<f8'), ('z', '<f8')])
>>> table.x
array([1., 4., 7.])
You can also specify the data type to use for all columns by specifying header: followed by the data type
>>> table = read_table("my_table.txt", dtype="header:f4")
>>> table.dtype
dtype([('x', '<f4'), ('y', '<f4'), ('z', '<f4')])
>>> table.y
array([2., 5., 8.], dtype=float32)
or you can specify the data type of each column by separating each data type with a comma
>>> table = read_table("my_table.txt", dtype="header:f4,f8,H")
>>> table.dtype
dtype([('x', '<f4'), ('y', '<f8'), ('z', '<u2')])
>>> table.z
array([3, 6, 9], dtype=uint16)
See Specifying and constructing data types for the character and string representations of the different data types that numpy supports.
Extension-delimiter map¤
Suppose you wanted to read a table from files that use a ; character to separate columns
>>> file.name
'data.xyz'
>>> print(file.read())
value;uncertainty
6.317;0.045
4.362;0.009
5.328;0.013
You can add the extension and delimiter to the extension_delimiter_map
>>> from msl.io import extension_delimiter_map
>>> extension_delimiter_map[".xyz"] = ";"
and then you can read a table from files with the .xyz extension without needing to explicitly specify the delimiter to use every time you read a table
>>> table = read_table(file)
>>> table.metadata
<Metadata 'data.xyz' {'header': ['value', 'uncertainty']}>
>>> table.data
array([[6.317, 0.045],
[4.362, 0.009],
[5.328, 0.013]])
